Univerzálny merací prístroj Deviser S7000 TV analyzer
- Obj. čislo: TVSNR-00440
Deviser S7000 TV analyzer DVB-C / T / H / S / S2&,65121; MPEG2 / 4 / H.264 HD&,65121; SIGNAL ANALYZER,65121; FAST SPECTRUM

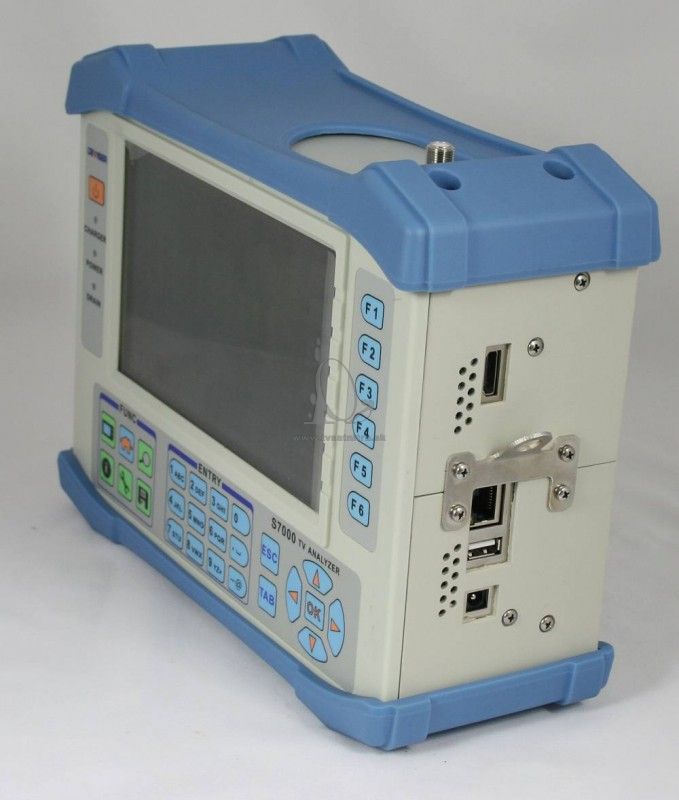

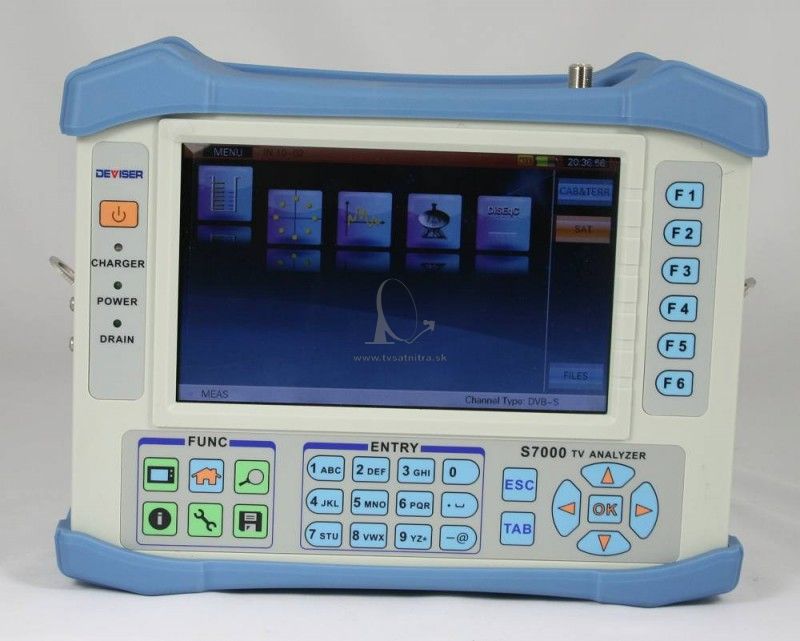

Univerzálny merací prístroj Deviser S7000 TV analyzer
Deviser S 7000 analyzer
na sklade - on stock
je univerzalny meraci pristroj ALL in one ktory obsajuje vsetky dostupne normy ma neranie signalu DVB-C / T / H / S / S2
﹡ MPEG2 / 4 / H.264 HD
﹡ SIGNAL ANALYZER
﹡ Rychle SPECTRUM
Slovensky manual
DVB-C, 8VSB(J.83A/B/C/D), DVB-T/H, DVB-S/S2
﹡ Digital/analog a satelitnu TV analizu s 5~2150MHz bandwidth
﹡ rychly spectrum analizer
﹡ DSP technology podporovana rozdielnym video decoding: MPEG-2 , MPEG-4 and H.264
﹡ Signal SD a HD
﹡ CAM module (conditional access) pre dekodovanie programov
﹡ TS-ASI input and output
﹡ IPTV analysis option
﹡ HDMI, LAN and USB interface
﹡ Lahka instalacia
﹡ High resolution 7" TFT LCD
﹡ rozmer L240×H170×D100, light weight.
﹡ Pracovny čas >4 hours (battery)
Standard v cene
HD&SD
DVB-C Cable
DVB-S Satellite
DVB-S2 digital
DVB-T
DVB-H
Analogue TV
Toolbox software
Volitelne možnost dokupit
Slot na CAM module &ASI Input/Output
IP TV
Display
7″ TFT LCD (16:9)
Frequency Span
Cable& Terrestrial TV
5MHz ~ 1050MHz
Satellite
950MHz ~ 2150MHz
TV Standard
DVB-T with 6, 7 and 8MHz channel bandwidth
DVB-H
DVB-S/S2
DVB-C and J.83 A/B/C/D
Analog TV, FM
TV Signal Analysis
DVB-S
Power, Constellation, MER, CBER, VBER,
DVB-S2
Power, Constellation, MER, CBER, LBER
DVB-C
Power, Constellation, MER, EVS, Pre-BER and Post-BER
DVB-T/H:
Power, Constellation , MER, MER by Carrier Measurement CBER, VBER, and ECHOS
Analog TV
level, V/A, C/N, Hum, FM Deviation and Demodulation
Spectrum Analysis
Cable& Terrestrial TV
5~1050MHz frequency range
30k/100k/300k/1MHz measurement bandwidth
Fast mode for return path
Satellite
950~2150MHz frequency span
Marker
2 markers with delta mode.
Video Decoding
DVB: MPEG-2 (MP@ML), MPEG-4 AVC H.264
Service list and PIDs.
TS – ASI input and output port
CAM module
Video recorder with 1GB memory space
HDMI and SCART output port
Colour system PAL, SECAM and NTSC
Power Supply
Rechargeable Battery inside
External power supply
Through the RF input connector.
5/13/15/18/24 V.
22 kHz signal selectable in satellite band
