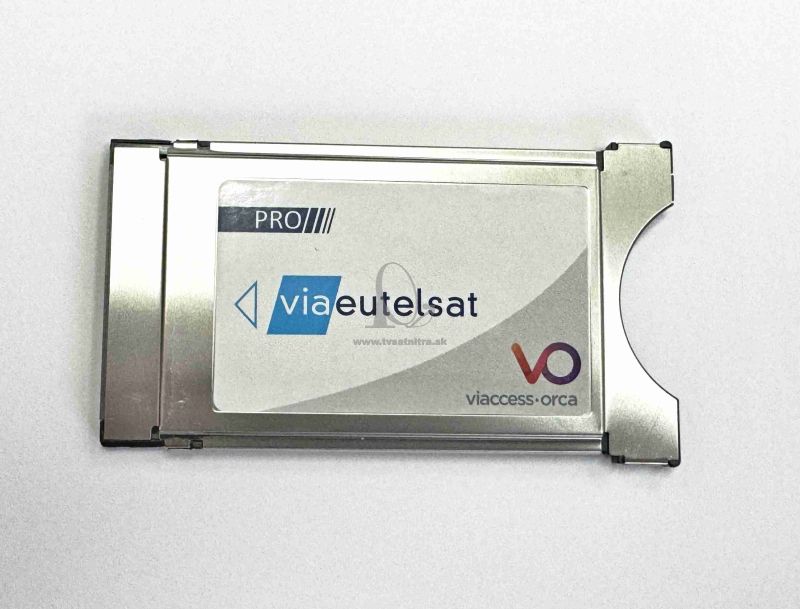

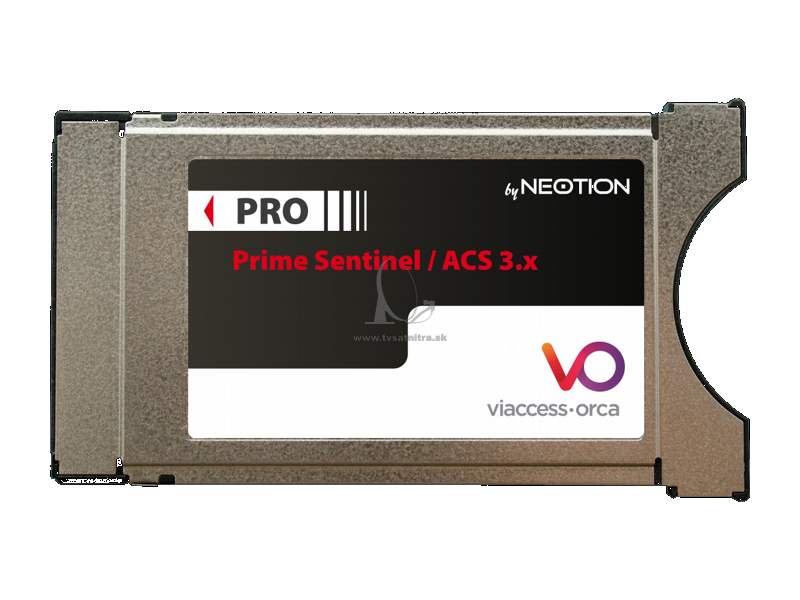

Dekodovací modul Neotion Viaccess PROFI 8
- Obj. čislo: TVSNR-02885
- značka: Viaccess
CAM modul Viaccess PROFI 8 umožňuje v profesionálnych DVB staniciach dekódovať zakódované TV kanály kódované systémom podmieneného prístupu Viaccess. Umožňuje simultánne dekódovanie až 8 kanálov v profesionálnych zariadeniach alebo v prijímačoch.
Dekodovací modul Neotion Viaccess PROFI 8
CAM modul Viaccess PROFI 8 umožňuje v profesionálnych DVB staniciach dekódovať zakódované TV kanály kódované systémom podmieneného prístupu Viaccess. Umožňuje simultánne dekódovanie až 8 kanálov v profesionálnych zariadeniach alebo v prijímačoch.
Doplňujúce informácie
Viaccess PRO CAM Main Features
• Stream Type supported:
- MPEG-2, MPEG-4, SD and HD
- All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
- Private Data
- Teletext
• Interfacing:
- Plug-and-Play & User Friendly
- DVB-CI high level MMI compliant
- Languages: English (more on demand)
• Standards:
- DVB Common Interface standard and PCMCIA ISO/IEC EN50221 compliant
- Smart Card: full ISO 7816-3 (T=0, T=14) compliant
- RoHS compliant - directive 2002/95/EC
• OTA:
- Upgrade from MPEG transport stream over the air
- DVB SSU compliant
• Memory:
- On chip eDRAM: 16Mbits
- Off chip SDRAM: 128Mbits
- Off chip Serial Flash: 32Mbits
• Security:
- IRDETOTM Conditional Access System embedded
(for MPEG-2 or MPEG-4, SD & HD Pay TV services)
- Unique and protected Authentication ID
- Hardware crypto accelerators
- On chip OTP
- Dual mode : Secure Chipset or No Secure Chipset mode
according to the operator broadcast system settings. Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
• Processing:
- ARM7TM @ 126MHz
- 8K I-cache and 8K D-cache
- 8 DVB-CSA descrambler up to 64 PID
- Section Filters - Transport packet filters up to 32 PID
• Size, Weight & Power supply:
- PCMCIA Type II
- 46g
- 5 volts, from any DVB-CI host
• Stream Type supported:
- MPEG-2, MPEG-4, SD and HD
- All Audio Type (MPEG2, AAC, HE AAC, Dolby, etc)
- Private Data
- Teletext
• Interfacing:
- Plug-and-Play & User Friendly
- DVB-CI high level MMI compliant
- Languages: English (more on demand)
• Standards:
- DVB Common Interface standard and PCMCIA ISO/IEC EN50221 compliant
- Smart Card: full ISO 7816-3 (T=0, T=14) compliant
- RoHS compliant - directive 2002/95/EC
• OTA:
- Upgrade from MPEG transport stream over the air
- DVB SSU compliant
• Memory:
- On chip eDRAM: 16Mbits
- Off chip SDRAM: 128Mbits
- Off chip Serial Flash: 32Mbits
• Security:
- IRDETOTM Conditional Access System embedded
(for MPEG-2 or MPEG-4, SD & HD Pay TV services)
- Unique and protected Authentication ID
- Hardware crypto accelerators
- On chip OTP
- Dual mode : Secure Chipset or No Secure Chipset mode
according to the operator broadcast system settings. Secure Chipset for application such as pairing (anti card sharing / anti control word sharing)
• Processing:
- ARM7TM @ 126MHz
- 8K I-cache and 8K D-cache
- 8 DVB-CSA descrambler up to 64 PID
- Section Filters - Transport packet filters up to 32 PID
• Size, Weight & Power supply:
- PCMCIA Type II
- 46g
- 5 volts, from any DVB-CI host
