Merací prístroj AMIKO MULTITRACKER (DVB-S/S2/T/T2/C)
- Obj. čislo: TVSNR-02568

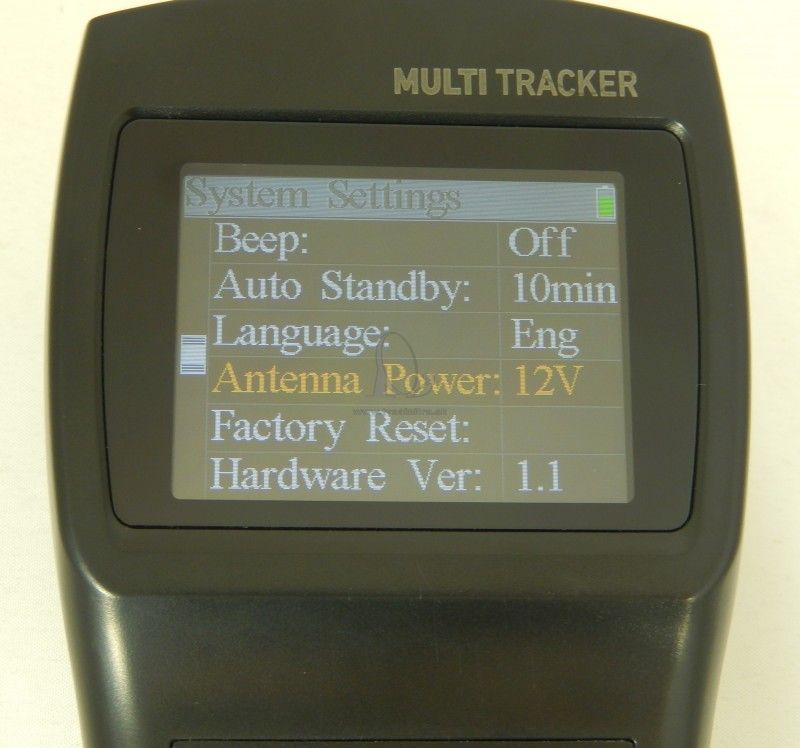

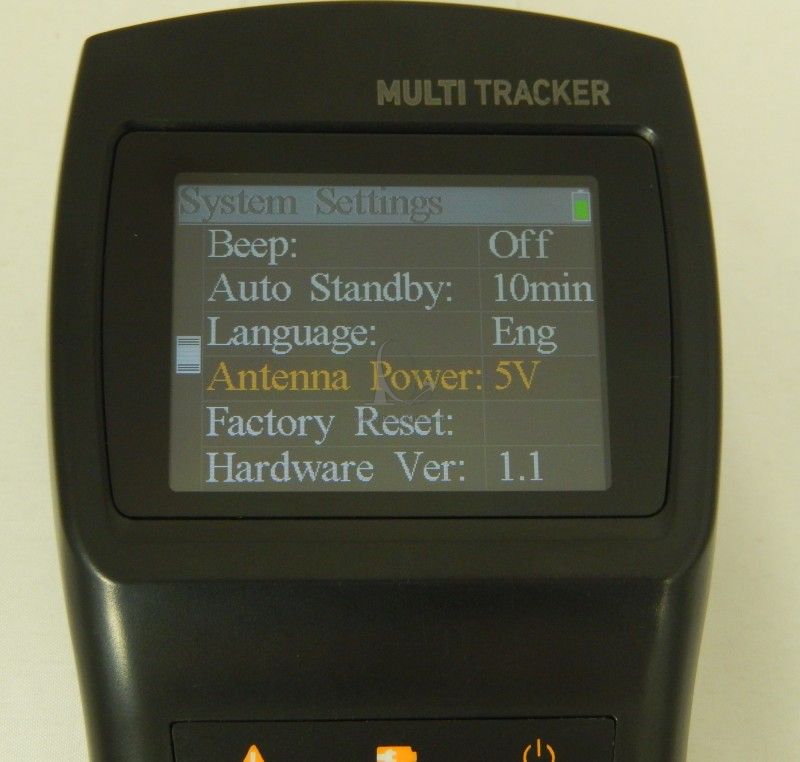

Merací prístroj AMIKO MULTITRACKER (DVB-S/S2/T/T2/C) novy model s novymi funciami - merací pristroj ideálny nástroj pre meranie signálov pre každý typ inštalácie DVB-T/T2, DVB-S/S2, DVB-C s možnostou prepínania napatia na antenu v T/ T2 pasme 5V alebo 12V.
Merací prístroj AMIKO MULTITRACKER (DVB-S/S2/T/T2/C)
Merací prístroj AMIKO MULTITRACKER (DVB-S/S2/T/T2/C) novy model s novymi funciami - merací pristroj ideálny nástroj pre meranie signálov pre každý typ inštalácie DVB-T/T2, DVB-S/S2, DVB-C s možnostou prepínania napatia na antenu v T/ T2 pasme 5V alebo 12V.
Doplňujúce informácie
- DVB-S / S2 / T / T2 / C Signals supported
- 320x240px color LCD display with controllable backlight
- Easily editable database

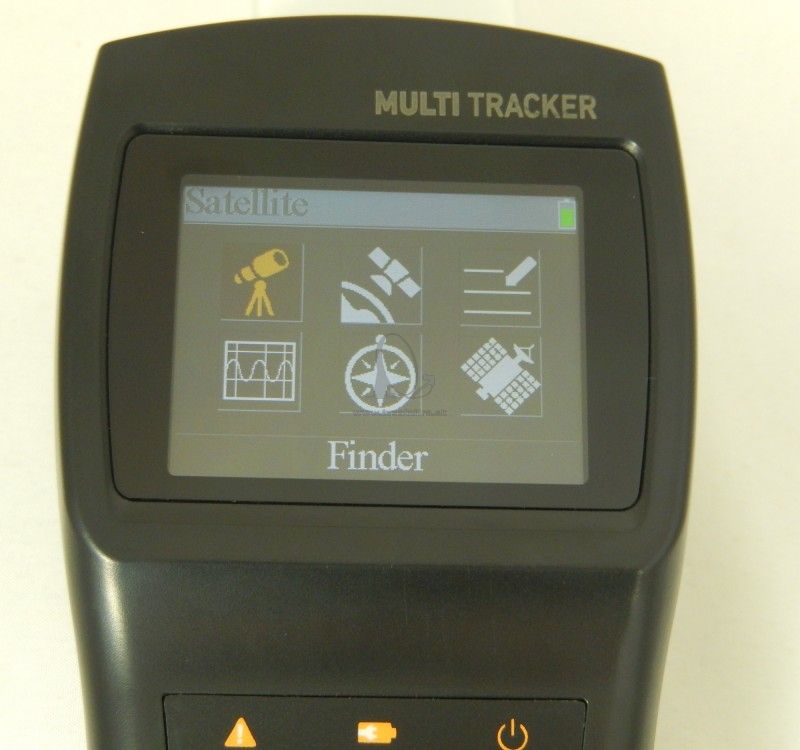

- Satellite Angle calculation (Azimuth & Elevation)
- Signal lock audible notification: On/Off
- DiSEqC support: 1.0, 1.1, 1.2 & USALS
- Easy firmware upgrades via USB
- Easy database updates vi PC tool over USB
- Fast charging Li-ion battery - Up to 3 hours of on time
- DC 12V power supply
- Tuner & Demodulation

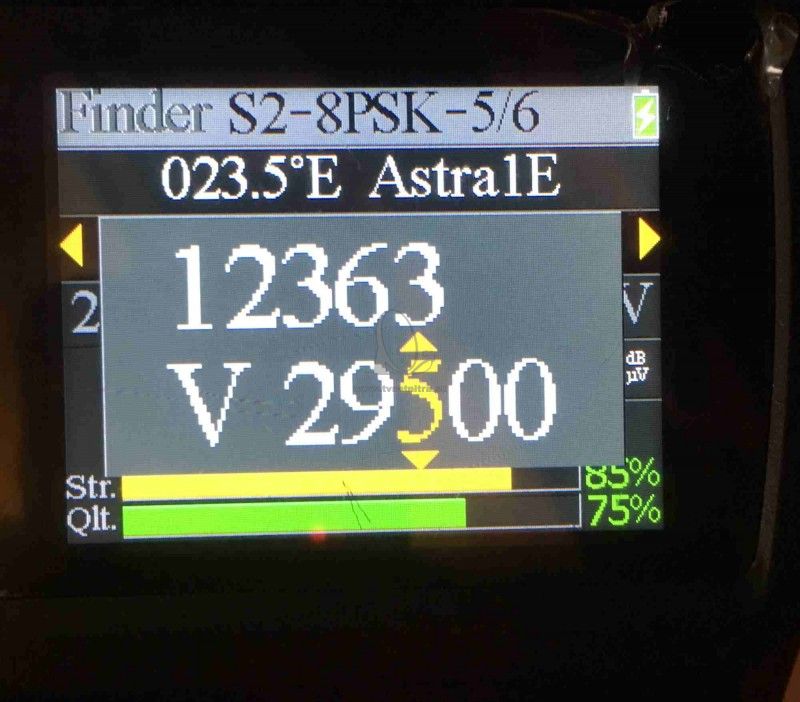

Satellite
Demodulation: QPSK, 8PSK, 16APSK, 32APSK
Code Rate: 1/2,1/3,1/4,2/3,2/5,3/4,1/2,3/5,5/6,7/8,8/9,9/10
Symbol Rate: 1~45MSPS
Input Frequency: 950-2150MHz
Input Impedance: 75Ohms
Min. Level In: 35dBuV (noise)
Max Level In: 90dBuV
LNB Power: 13V Vertical, 18V Horizontal (300mA)
Bandwidth: C/Ku-band (selectable)
DiSEqC support: 1.0, 1.1, 1.2 & USALS

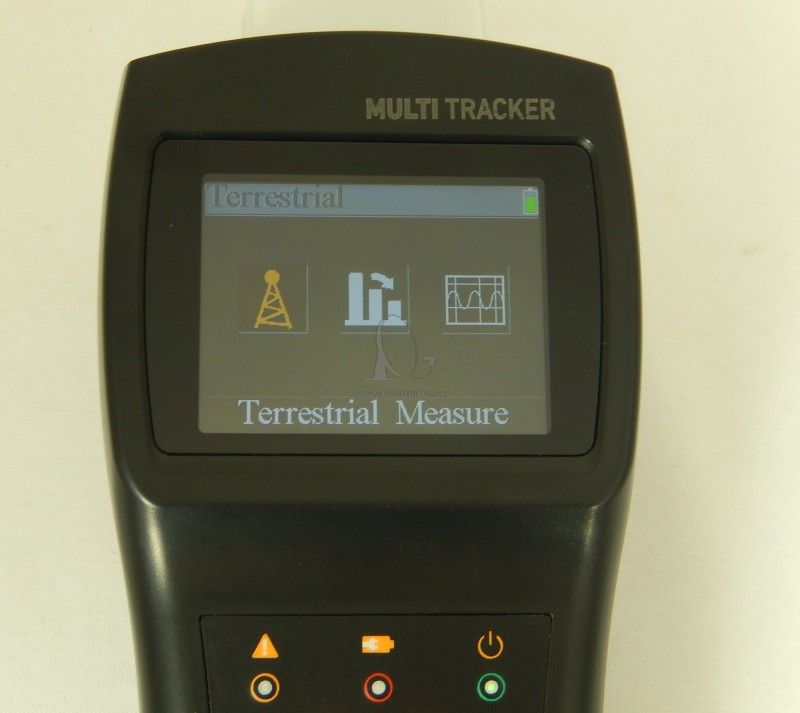

Terrestrial
DVB-T:
Carriers: 2k, 4k, 8k
Guard Interval: 1/4, 1/8, 1/16, 1/32
Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Modulation: QPSK,16-QAM,64-QAM
Bandwidth: 6, 7 and 8 MHz
DVB-T2:
Carriers: 1k, 2k, 4k, 8k, 8k+E, 16k, 16k+EXT, 32k,32k+EXT
Guard Interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Modulation: QPSK, 16QAM, 64QAM, 256QAM
Bandwidth: 6,7 and 8 MHz
PLP Mode: Single / Multiple
PLP ID: 0-255 - Tuner & Demodulation
Cable
Frequency range: 44MHz ~ 870MHz
Symbol rate: 1MS/S ~ 7.9MS/S
QAM mode: 16 / 32 / 64 / 128 / 256 QAM
Input RF level range: 30dBμV ~ 100dB μV
SNR: 20dB ~ 40dB, + 2dB
BER: 1.0E-3 ~ 1.0E-9
Power
Power Supply: 100-240V (50/60Hz) AC in / 12V/1200mA out
Fast Charging
