Merací prístroj Televes H30 FLEX DVB-S/S2 - T/T2

Product description:

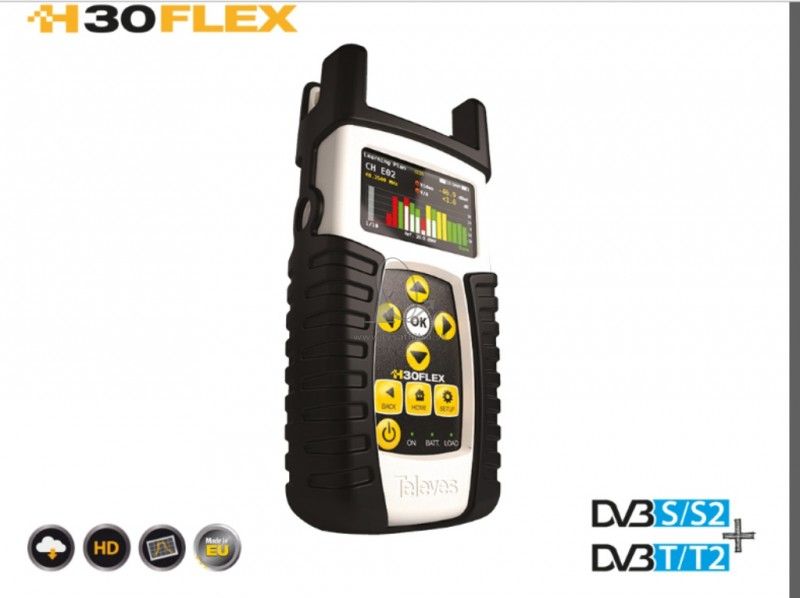

Televes 593302 H30FLEX DVB-S/S2 + DVB-T/T2 is a hand-held professional signal meter and analyzer, for DVB-S/S2 + DVB-T/T2 signals. Very light and compact is easy to use in the installation site as well as in the laboratory. It features professional accuracy and measurement speed and it is fully and easily upgradable to DVB-C and dCSS - SCR, with optional extra software 593233 Option DVB-C and 593234 Option dCSS - SCR. The color 2.8" TFT 400 x 240 screen displays clear measurement images as well as video and audio of the TV program selected. It also has 400MB internal storage for measurement logs and USB 2.0 port for downlaoding datalogs and upgrading the sofrware. The boot time is under 10 seconds and the battery is new Smart Li-Ion which offers up to 4 hours continuous use! Plus, as a 100% professional tool it has professional protection of 1 m (3 ft) drop to concrete on all sides!

Technical features:

Frequency:
- Range: 50-880MHz and 950-2200MHz
- Resolution: 125 kHz
- Tuning: Frequency or channel

Input:
- Impedance: 75O F-type connector

Spectrum Analyzer:
- Span: 5, 10, 20, 50, 100, 200, 500 MHz and Full
- Scale: 5 and 10 dB/div
- Auto and manual reference level: Yes

DVB-S Measurements:
- Power: 45-110 dBuV
- CBER: 9.9E-2 - 1.0E-6
- VBER: 1.0E-4 - 1.0E-8
- MER: Up to 20 dB
- C/N: Auto

DVB-S2 Measurements:
- Modulations: QPSK, 8PSK
- Power: 45-110 dBuV

DVB-T Measurements:
- Modulations: COFDM (QPSK, 16QAM, 64QAM)
- Power: 45 - 110 dBuV
- CBER: 9.9E-2 - 1.0E-6
- VBER: 1.0E-3 - 1.0E-8
- MER: Up to 35 dB
- C/N: Auto

DVB-T2 Measurements:
- Modulations: COFDM (QPSK, 16QAM, 64QAM, and 256QAM)
- Power: 45-110dBuV
- LDPCBER: 9.9E-2 - 1.0E-6
- BCHBER: 1.0E-3 - 1.8E-8
- Link Margin: Up to 30dB
- MER: Up to 35dB
- C/N: Auto

Analog Measurements:
- Level measurement: -30 to +60 dBmV
- V/A: up to 30 dB
- C/N: up to 50 dB

Channel Plans:
- Factory terrestrial channel plans: CCIR, CCIR + LTE, OIRT, KBW, FCC, DAB, SIM
- Factory satellite channel plans: 68E INTEL C, 68E INTEL, 42E TURK, 39E HELLAS, 33E EUTEL, 28E EUTEL, 28E ASTRA, 26E BADR, 25E EUTEL, 23E ASTRA, 21E EUTEL, 19E ASTRA, 16E EUTEL, 13E HOTB, 10E EUTEL C, 10 EUTEL, 9E EUTEL, 7E EUTEL, 4E ASTRA, 1W THOR5, 1W THOR6, 5W EUTELC, 5W EUTEL, 7W NILE, 30W HISPA, 48W AMZC, 48W AMAZ, SIM
- Custom channel plans (learning plan): Yes

Configuration:
- Units: dBuV, dBmV, dBm
- LNB: 13, 18 Vdc
- LNB Tone: 22 Khz
- DiSEqC: Yes
- SCR: Yes (with Option 593234)

Features:
- Channel Info: Yes
- System Scan: Yes
- Learning Plan: Yes
- Constellation: Yes
-MPEG: Yes

Communication:
- Interfaces USB 2.0 to download Datalogs and software updates
- Storage 400 MB (internal) for measurements
- Power up time < 10 seconds

General:
- Ruggedness: Survives 1 m (3 ft) drop to concrete on all sides
- Weight: 510g
- Dimensions 6.9 x 3.9 x 2 in / 175 x 100 x 52 mm (H x W x D)
- AC Adaptor Input: 100-240V~ 50-60Hz, Output: 12VDC, 2A,
- Battery LiIon smart battery (7.2VDC, 2300mAh), - Operating Time Up to 4 hours
- Operating Temperature 23F to 104F (-5C to 45C), - Storage Temperature -4F to 158F (-20C to 70C)
- Humidity 5% to 95% non-condensing
