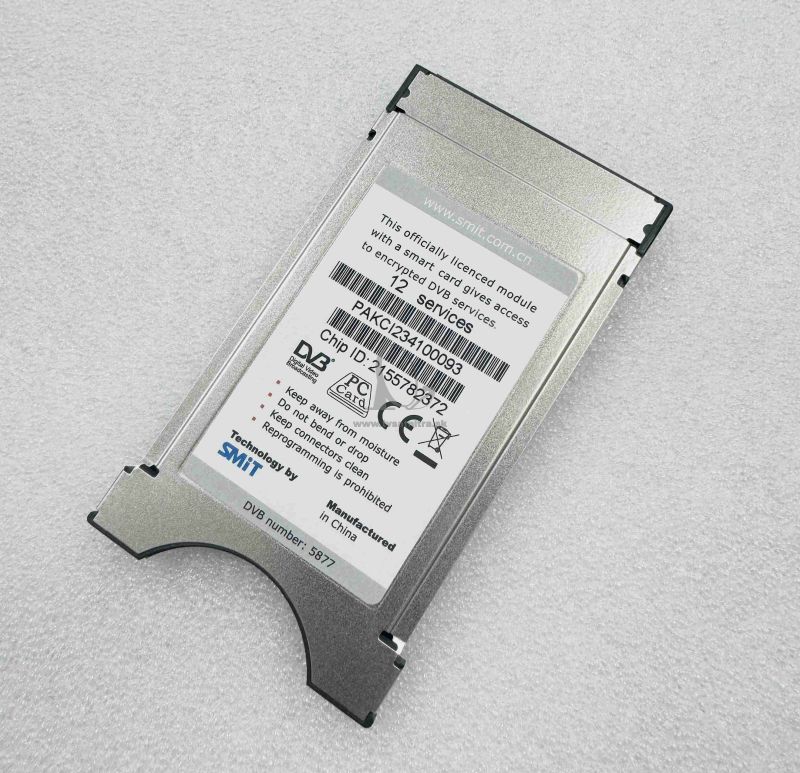

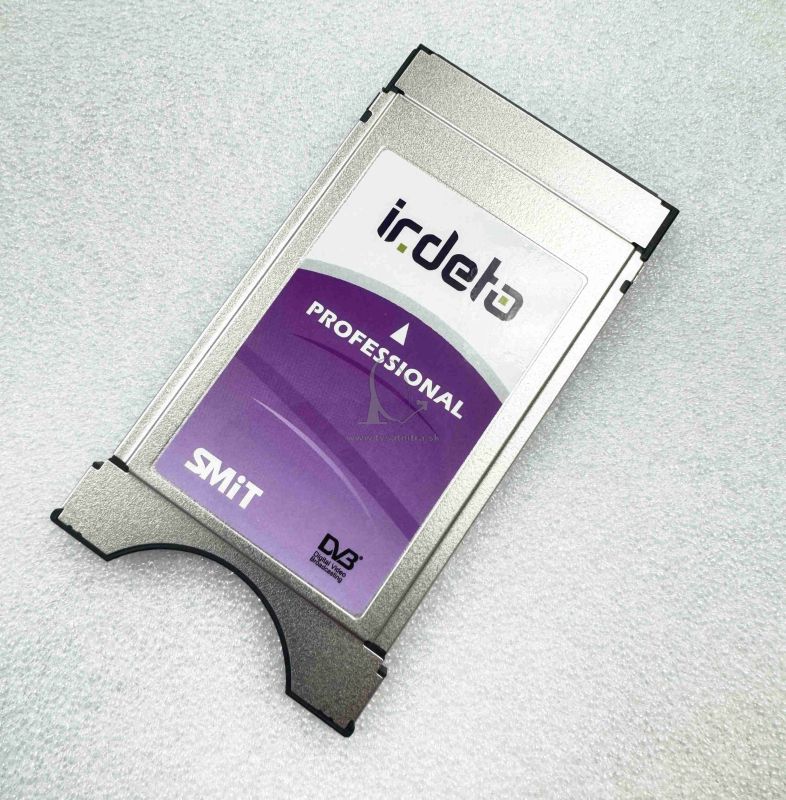

CAM MODUL IRDETO SMIT PROFESSIONAL PRO 12

CAM modul IRDETO SMIT Professional PRO 12 umožňuje v profesionálnych DVB staniciach dekódovať zakódované TV kanály kódované systémom podmieneného prístupu IRDETO. Umožňuje simultánne dekódovanie až 12 kanálov v profesionálnych zariadeniach alebo v prijímačoch.

PROFESIONÁLNY CA MODUL SMIT IRDETO PRO 12 JE SCHONÝ DEKÓDIVAŤ 12 TV STANÍC KÓDOVANÝCH V SYSTÉME IRDETO TM.

• THE CAM CAN BE USED ON IRDS, WHICH HAS DVB-CI INTERFACE
• METICULOUSLY TESTED WITH IRDS MODELS FROM EUROPE, THE MIDDLE EAST, AUSTRALIA, ASIA
• THE CAM SUPPORTS IRDETO SOFTCELL3.0 ENHANCED SECURE FEATURES （OPTIONAL）
• WITH AN AUTHORIZED IRDETO SMART CARD, THE CAM GIVES ACCESS TO DVB ENCRYPTED PROGRAM CHIPSET & TS BANDWIDTH:
• UP TO 12 SERVICES DESCRAMBLING
• BASED ON THE EMBEDDED 32-BIT CPU (ARM7TDMI)
• ADOPTING ADVANCED 0.18-MICRON TECHNOLOGY
• ADOPTING ASIC CHIP WITH PROPRIETARY INTELLECTUAL PROPERTY RIGHT
• EMBEDDED LINUX SYSTEM WITH PROPRIETARY INTELLECTUAL PROPERTY RIGHTS
• ADVANCED LANGUAGE DEVELOPMENT ENVIRONMENT
• SUPPORTING SUBSEQUENT DEVELOPMENT OF VALUE-ADDED SERVICES
• FLASH SIZE: 4M BYTES
• RAM SIZE: 384K BYTES
• TS PROCESS BANDWIDTH: UP TO 96MBPS
• LIMITED THERMAL AGING TEST IS OVER 24 HOURS

SPECIFICATION

PHYSICAL & ELECTRICAL CHARACTERISTICS:

DIMENSIONS: TYPE II PCMCIA CARD (100MM X 58MM X 4MM)

• CONNECTOR: 68-PIN PCMCIA SLOT
• OPERATION VOLTAGE: 4.5V ~ 5.5V
• OPERATION CURRENT: <150MA
• LOW POWER CONSUMPTION: < 600MW

STANDARD:

• PLUG AND PLAY
• COMPATIBLE WITH DVB-CI STANDARD (EN50221)
• COMPATIBLE WITH ETR289
• COMPATIBLE WITH ISO7816 T=0/T=14 PROTOCOL, CLASS A AND CLASS B
• COMPATIBLE WITH MPEG-2/MPEG-4
• COMPATIBLE WITH THE ROHS DIRECTIVE 2002/95/EC AND ITS SUBSEQUENT AMENDMENTS

DESCRAMBLING & FILTERING:

• SUPPORTING COMMON DESCRAMBLING ALGORITHM OF EUROPE
• MULTI SERVICES DESCRAMBLING (OPTIONAL), UP TO 12 SERVICES DESCRAMBLING
• UP TO 24 CONFIGURABLE PID FILTERS FOR FILTERING PACKET OR SECTION DATA

SOFTWARE UPGRADE:

• SUPPORT OTA SOFTWARE UPGRADE
• SECURE LOADER FOR MORE SECURE, STABLE AND EFFICIENT SOFTWARE UPGRADE
